Product Overview

Terrafix W22 is a high strength flexible wall tile adhesive with excellent nonslumpand extended open time characteristics. Terrafix W22 complies with the requirements as per EN12004 and passes all tests required for C2TE classified adhesives. Terrafix W22 is suitable for interior and exterior walls

Properties

Terrafix W22 has the following properties:

• Excellent adhesion
• Non-slump
• Easy workability
• Water resistant
• Extended open time
•  Excellent flexibility

Areas Of Use

• As a high strength non-slump ceramic tile adhesive for laying stone
• Mosaic
• Marble
• Natural stones
• Vitrified tiles on masonry substrates such as sand/cement render
• Precast concrete
• Gypsum board
• Cement fibre board

Application Method

Surface Preparation:

Ensure that the surface to be covered is clean and free of foreign matter. Absorbent and porous substrate should be wetted thoroughly with water prior to the application of Terrafix W22. Dusting surfaces should be treated with a penetrating primer.

Mixing:

Add about 5.6-6 litres of water to 20kg of Terrafix W22 and mix thoroughly to a thick and creamy consistency. Let it stand for 5 minutes, re-stir and apply.

Application:

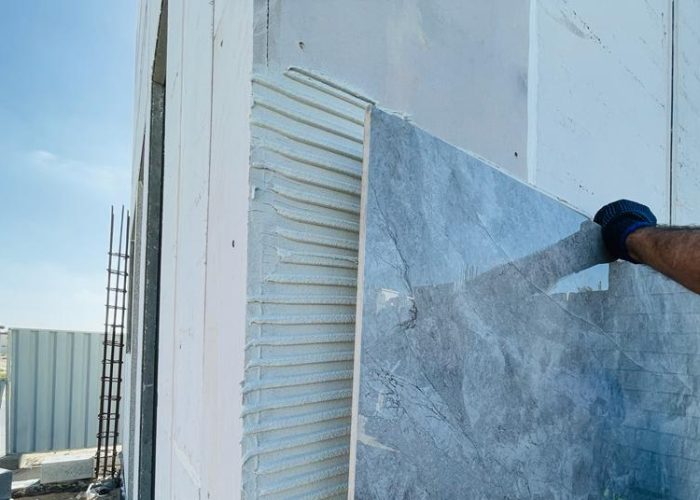

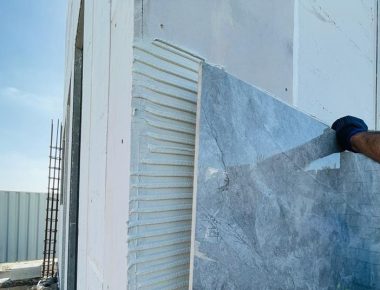

Apply Terrafix W22 in a layer approximately 3mm thick to the surface with the smooth side of a notched trowel. Pull the trowel through the applied layer with the notched edge. Push the tiles into place so that full adhesion is obtained. Fix tiles before the adhesive has surface dried.

Plan work accordingly. Prepared material must be used within 1 hour.

Spacing:

To ensure even spacing, tile spacers of the required thickness are recommended.

Grouting

Refer to Terragrout data sheet for details.

Expansion Joints

Expansion joints, when necessary, should be incorporated in the design stage.
